Chapter 1: Product Description
1.1 Product overview
The intelligent ice blue skin management system (hereinafter referred to as “this product “) is to collect facial skin detail images through 10 million pixel high-definition micro-range camera combined with three-spectral imaging technology, through intelligent diagnosis and analysis of artificial intelligence core engine ,8 dimension fine items to detect skin problems, and according to the diagnosis results of private customized beauty care program and intelligent recommendation of professional skin care products; Combined with the techniques of” ultrasonic shovel knife “,” bubble “,” nano atomization “,” ultrasonic wave “,” gold radio frequency “,” ice repair “and so on, the six high configuration beauty functions comprehensively manage the skin, combine the results of AI skin diagnosis with skin care products and other skin care items, and develop a multi-functional integrated equipment for skin detection and management.
1.2 Product characteristics
1) multi-function integration: this product sets skin detection, custom beauty program, product push; basic beauty care, cuticle cuticle cleaning, deep cleaning, deep hydration and nourishing, anti-aging maintenance, sedation and repair functions in one one machine multi-energy, market demand is large.
High 2) comfort: the handle appearance design conforms to the human body engineering mechanics principle, the material skin friendly feeling is strong, the body feeling is comfortable.
3) function principle: the core principle of this product is 3 spectrum sampling, AI intelligent skin measurement, push of intelligent products, customization of AI beauty scheme; six nursing functions :” ultrasonic shovel knife “,” atmospheric bubble “,” nano atomization “,” ultrasonic “,” gold radio frequency “,” ice repair “.
Simple 4) operation: AI intelligent analysis, convenient operation, easy to use, no surgery, no broken skin, strong safety.
1.3 Technical parameters
Vacuum range: 700 mmHg
Output control Touch screen & handle switch
Gold RF Rapid response multipole (energy level
10 regulation)
Electrophoresis 1MHZ( energy 1 level 0)
Ultrasonic ultrasound 1MHZ( energy 1 level 0)
Frozen head Water cooling & air cooling (energy
level 10 regulation)
High-frequency scalpel 25KHZ( energy level 10 regulation)
Ion Shotgun mmHg 2000
Interface 10.1 inch computer touch screen
Input voltage 110-240 V 50-60HZ 150AV
1.4 Contraindications
Do not operate on damaged skin, skin allergy acute phase, skin wound customers do not recommend operation, will cause skin tingling.
Infectious skin problems can not be done, easy to increase the skin irritation.
Patients with heart disease, epilepsy, tumor do not do small bubbles, there are potential hazards.
After filling, plastic minimally invasive surgery can not be done, may affect the filling.
People with metal stents in their bodies can not do it, which may affect the therapeutic effect.
For the safety of mother and baby, pregnant women are not recommended to do.
People with hormone dermatitis do it carefully to avoid irritation.
Chapter II Installation of Instruments
2.1 Introduction of annexes
-
1) Smart Ice Blue Host (1)
-
2) power cord (1)
-
3) hand-held connectors (1 set of 6)
-
x1 of Ultrasonic Scraper
-
x1 of ultramicro small bubble Hand
-
x1 of nano-atomization spray hand
-
Gold RF x1
-
x1 of Ultrasonic Import Handpiece
-
1 solution bottle ABC( each)
-
D(1 solution bottles
-
Sewage bottles (1)
-
Solution (optional)
-
Sewage bottles (1)
-
1 * Hand support
-
1 * Instructions for Use (including warranty card)
-
1 * Passes
-
1 * Packing list
If it is found that the accessories are not complete, please contact the supplier or company within 24 hours after receiving the goods.
2.2 Instrument Component Name and Function

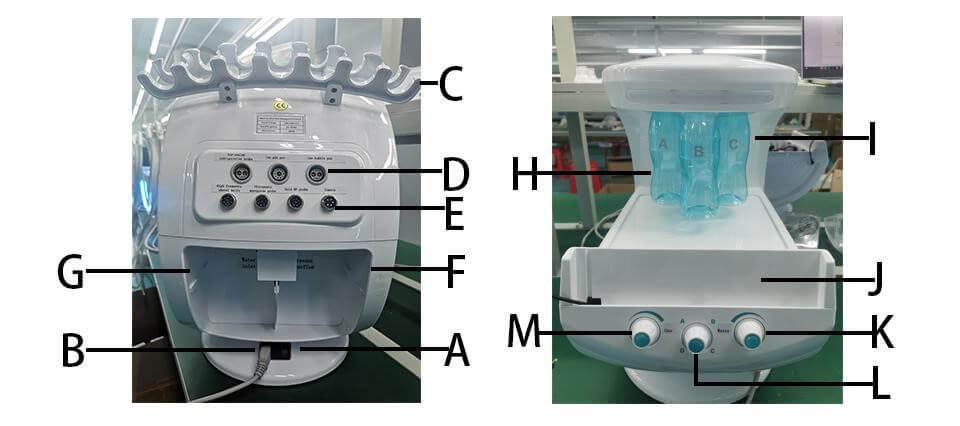

2.2.1 Instrument Accessories Name and Function
A power key: power switch button, press can switch the instrument.
B power plug: for connecting power cord.
C hand tool holder card slot: for fixing the hand tool.
D hand tool connection hole: hand tool for connecting ice head, ion spray gun pen, ion bubble pen.
E hand tool connection hole: hand tool for connecting high frequency shovel leather knife, ultrasonic waveguide inlet, gold radio frequency head, camera.
F sewage bottle: used to store waste sewage after cleaning skin.
G D solution bottle: for storing functional solution for skin care.
H screen power cord: a power cord used to connect the operation screen and charge it for the operation screen.
I ABC solution bottle: for storing functional solution for skin care.
J screen card slot: used to place the operation screen and connect the operation screen.
K Control Water Flow Control Button: The left and right rotation controls the size of the solution flow of the hand tool (commonly used as ion bubble pen and ion spray gun pen)
L solution bottle selection rotary button: left and right rotation according to the functional division of the selection solution bottle for the transport of functional solutions.
M air pressure adjusting knob: the left and right rotation adjusts the air pressure of the hand tool (commonly used as ion bubble pen and ion spray gun pen)
2.3 Installation of instruments
2.3.1 Hand Mounting

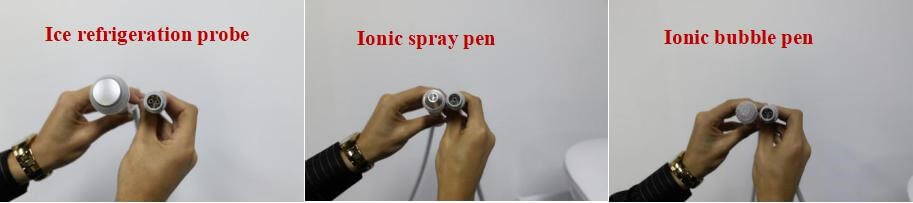

Installation of 1) Ice Head, Ion Shotgun Pen, Ion Bubble Pen
First find the corresponding hand connector and the corresponding plug, the plug open words position on the left side of the connecting hole clasp position, push inward, until the buckle can be tight.
Step 1
Step 2
Installation of 2) high-frequency spatula, ultrasonic waveguide head, gold radio head, camera First find the corresponding hand gear connection line and the corresponding plug, the plug groove position is aligned to the left clasp position of the connecting hole, push hard inward, and then tighten the nut counterclockwise after fastening.
Step 1
The groove of the corresponding handpiece corresponds to the buckle. Push hard after alignment position, tighten nut.

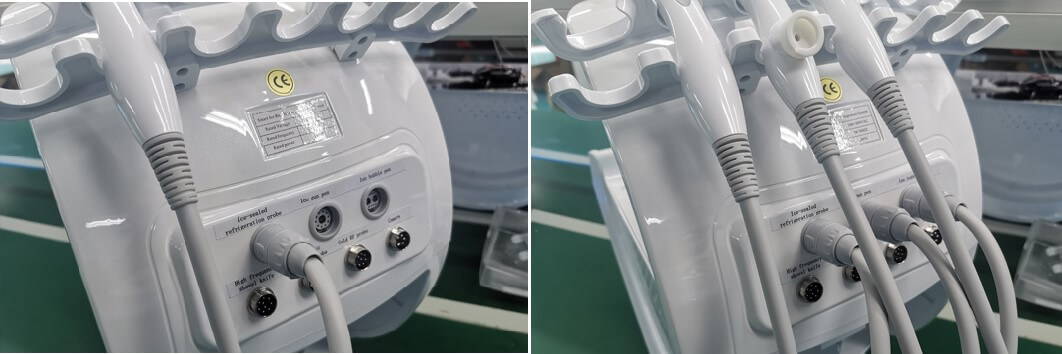

Step 2
corresponding connecting holes for each hand probe
2.3.2 Fitting Installation
1）ABC solution bottle installation
ABC solution bottle is placed functional skin care solution according to demand and tightened counterclockwise according to the order of A、B、C from left to right; remove the solution bottle and unscrew it clockwise.
2）Add water to instruments
Step 1: Remove the D solution bottle and sewage bottle at the rear of the instrument and see the water inlet on the left and the overflow outlet on the right
Step 2: Put the water injection pipe into the funnel and connect to the water inlet; connect the overflow pipe to the overflow port
Step 3: Add the purified water (which must be pure water) to the water outlet. After the water is filled, it flows out from the overflow port. Add water to complete
3）D solution bottles installed and removed
Disassembly: Tighten the groove of the solution bottle by hand, pull back forcefully to complete the disassembly.
Installation:
1、pull the solution bottle cap up, add the corresponding functional solution, and close the cap down.
2、align the two raised positions of the cap (water mouth connecting pipe) to the two small holes of the water mouth, push inward to complete the installation.
Step 1: Pull up the cap and add the solution and close the cap down
Step 2: Align the solution bottle connector to the insertion port
Step 3: Push inward to complete installation
4) sewage bottles removed and installed
Removing: Tighten the groove of the dirty water bottle by hand, pull back hard to complete the disassembly. (same as removal of D solution bottles) Installation :(Same as D solution bottle installation steps)
1. pull the cap of the sewage bottle up, add the corresponding functional solution, and close the cap down.
2. align the two raised positions of the cap (water inlet connecting pipe) to the two small holes of the water inlet, push inward to complete the installation.
5) operation screen installation
1. align the communication interface below the operating screen with the connection port at the slot position of the operating screen
3. Insert the power connector into the connection port
Chapter III Instructions for the Use of Instruments
3.1 Description of mainframe and accessories
1. Boot Operation
Long press the boot button to enter the main interface
3.2 Description of interface operations
1) enter the interface, double-click the “Smart Ice Blue” icon to enter the instrument control interface
2）Login Interface – Enter Identity Information, Enter Password/face Recognition Login
Step 1: Go to the login page and click Register
Step 2: Input personal information, input face recognition image, click OK
Step 3: Return the login interface to enter password login or login with face recognition.
3) membership management
Enter the administrator page to view background membership management, machine
management, password management and product management. Click on the product management page to self-help add recommended skin care products.
4) Home Interface Operation
1、Full testing – skin testing
Click on the full test to enter the skin detection interface
Using the skin detection probe (camera), sample the “forehead, corner of the eye, cheek, nose, corner of the mouth, chin” in order of the comprehensive detection interface, and click the
“analysis” button after sampling.
2. Comprehensive analysis interface
comprehensive analysis interface: view comprehensive skin analysis and view comprehensive skin
care recommendations. Fine item analysis: click on “wrinkles, pores, spots, roughness, oil points, moisture, acne, sensitivity” and other items can browse local skin fine analysis, enlarge photos to view details. Example :(The following items are for example only, not all details are listed)
Acne Detail Analysis Report – Preview of Amplification of Acne
point detection-return to the main page-click point detection can achieve local skin sampling detection analysis
6) view recommended items
Return to the full test page – Click on “Recommended Products” to view smart recommended skin care products based on skin test results
7) Nursing Operations
main interface click-care operation-enter the care operation interface, according to the care needs click on each sub-item for care operation
A、 high frequency shovel knife (remove dead skin, clean skin)
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of care; press “+” to adjust the time (increase time),
Press “-” to adjust the time downward (shorten the time).
(b) Mode: M1 ： continuous high frequency vibration mode (highest vibration frequency, strongest cleaning force);
M2： high frequency vibration mode (moderate vibration frequency, high comfort)
M3 ： intermittent high frequency vibration mode (vibration with intermittent, massage feeling, high comfort)
Energy: The energy parameter is 1-10, which can be adjusted according to demand; press “+” to adjust energy upward (increase energy),
Press “-” to adjust the energy down (reduce the energy). (Specific parameters depending on the need for care).
After adjusting the energy parameters, click the start button to do the operation.
B、 ion bubble pen (deep cleaning pores dirt)
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of care; press “+” to adjust the time (increase time),
13
Press “-” to adjust the time downward (shorten the time).
Adjust the air rotation button (Fig .2, left 1): rotate the air pressure to the right to increase, turn the air pressure to the left to become smaller. (depending on care needs)
solution bottle selection button (middle of figure 2): select the corresponding solution bottle according to the nursing needs, and rotate the rotary button to the corresponding position. (Select the solution A bottle and rotate the button to the letter A, so push).
water transfer rotation button (figure 2 right 1): the flow of the solution to the left is increased and the flow of the solution to the right is reduced. (depending on care needs) Waste water bottle status: show full need to replace waste water bottle, not full need.
After adjusting the parameters, click the start button to operate.
C、 ultrasonic waveguide head (high frequency introduction, fast absorption)
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of care; press “+” to adjust the time (increase time),
Press “-” to adjust the time downward (shorten the time).
Mode: M1 ： continuous high frequency vibration mode (the highest vibration frequency, the strongest import force);
M2 ： intermittent high frequency vibration mode (vibration with intermittent, massage feeling, high comfort)
M3： low frequency vibration mode (moderate vibration frequency, high comfort) Energy: The energy parameter is 1-10, which can be adjusted according to demand; press “+” to adjust energy upward (increase energy),
Press “-” to adjust the energy downward (reduce the energy), the higher the energy, the higher the temperature. (Specific parameters depending on the need for care). After adjusting the energy parameters, click the start button to do the operation.
D、 gold RF head (light grain tight, collagen regeneration)
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of
14
care; press “+” to adjust the time (increase time),
Press “-” to adjust the time downward (shorten the time).
Energy: The energy parameter is 1-10, which can be adjusted according to demand; press “+” to adjust energy upward (increase energy),
Press “-” to adjust the energy downward (reduce the energy), the higher the energy, the higher the temperature. (Specific parameters depending on the need for care). After adjusting the energy parameters, click the start button to do the operation.
E、 ice-sealed refrigeration head (replenish water and lock water, relieve repair; heat import, lymphatic detoxification)
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of care; press “+” to adjust the time (increase time),
Press “-” to adjust the time downward (shorten the time).
Temperature: Temperature parameters of -1℃-10℃, can be adjusted according to demand; press “+” to adjust the temperature upward (increase temperature),
Press “-” to adjust the temperature down (reduce the temperature). (Specific parameters depending on the need for care).
After adjusting the temperature parameters, click the start button to operate.
Thermal detoxification mode:
Duration: The general default time is 15 minutes/times, can be adjusted according to the needs of care; press “+” to adjust the time (increase time),
Press “-” to adjust the time downward (shorten the time).
Temperature: The temperature parameter is 40 ℃ -50 ℃ , which can be adjusted according to demand; Adjust temperature (raise temperature) up by +,
Press “-” to adjust the temperature down (reduce the temperature). (Specific parameters depending on the need for care).
After adjusting the temperature parameters, click the start button to operate.
8) Help Page
Operation video: can view wisdom ice blue instrument operation teaching video.
Product display: View all skin care products uploaded and their details.
System upgrade: You can see if you have a new version and upgrade the system yourself.
After sale help: contact the manufacturer and seek after sale problem help.
9) shutdown
Click Exit – Exit System, Back to Desktop
Click on the lower left corner “start” button, click on the shutdown, you can close the operation screen.
3.3 Operational process description
1. skin sampling – skin detection analysis – skin care recommendation – product recommendation.
2. care order: high frequency shovel leather knife – ion bubble pen (with product)- ultrasonic waveguide inlet (with product)- gold radio frequency head (with product)- ice-sealed refrigeration head – ion spray gun pen (with product).
3.4 End of instrument operation
1. press [shutdown key] to turn off the operation screen; press [power key] to turn off the power.
2. unplug the power line from the power outlet (no power on all the time).
3. clean the probe with 75% alcohol cotton and place the handpiece on the handpiece bracket.
4. put the instrument and related accessories in a safe place that children should not touch.
Chapter IV Safety Instructions and Maintenance
4.1 Summary
To maintain the performance of the instrument, including cleaning and storage methods of self-diagnosis and error code information instructions.
4.2 Cleaning
Gently wipe the instrument and probe clean with a towel, clean the probe with 75% alcohol when not in use.
Change the waste water bottle solution and solution bottle solution regularly.
4.3 Custody
Keep the product for a long time after cutting off the power supply to avoid the humidity of the place to keep.
4.4 Pre-failure Confirmation
Issues Estimated causes Confirmation
Power supply abnormal: Adapter contact poor
Make sure the adapter is connected
Instrument start abnormal: Bad hand/camera condition
Contact Agent/Service Centre to replace hand or camera
or caused by poor actuator condition
Contact Sales Agent / Service Centre
Outlet/jet anomalies: Water pipe/pipe blockage
Contact Sales Agent / Service Centre
Abnormal computer: System software issues
Contact Sales Agent / Service Centre
